ISO9001 Certification 60mesh Woven Wire Mesh Panel For Filtering

Product Categories
Hebei Standard Filter Equipment Co.,Ltd
Contact Now

ISO9001 Certification 60mesh Woven Wire Mesh Panel For Filtering

  • 1
  • 2
  • 3

Brand Name : STD

Model Number : STD-WWM-007

Certification : FDA ,CE，ISO9001

Place of Origin : Hebei,CN

MOQ : 1

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 200 pieces per day

Delivery Time : 5-8word days

Packaging Details : carton inside and wooden box outside.

Name : Woven Copper Wire Mesh

Material : Copper

Color : Silver

Size : Customizable

Specification : 2-400 mush

Application : Shielding,filtering

Hole Shape : Square

Length : Customized

Width : Customers' Request

Thickness : Customers' Request

Technique : Woven

Type : Rectangle,customized

Contact Now

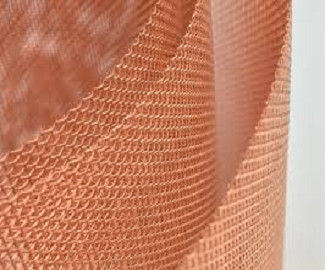

Fine Plain Woven Copper Mesh Cloth For Shielding or Filtering

product description:

Copper mesh cloth can be distinguished by the size of hole. Copper mesh has large holes, copper wire cloth has very small holes, looks like cloth. They have smooth surface, bright color, good electricity and heat conductivity, good toughness, can resistant to corrosion, abrasion, wear, rust, salt air, brine, acid and alkali. They can be used for decorative mesh of house facades, walls, ceilings, lamps, cabinet, also can used as filtration screen in mine, metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food and other industries.

The soft and malleable properties of copper metal make it ideal for woven wire mesh and wire cloth.

It is often used in industry for its properties of high electrical conductivity and thermal conductivity as it conducts heat up to eight times better than other commonly used metals.

Copper mesh and copper wire cloth specification
Mesh/inch Wire diameter Opening (mm)
SWG mm Inch
2 15 1.80 0.071 10.90
2 16 1.60 0.063 11.10
3 16 1.60 0.063 6.866
4 16 1.60 0.063 4.75
4 18 1.20 0.047 5.15
4 20 0.91 0.036 5.44
4 22 0.711 0.028 5.64
5 20 0.91 0.036 4.17
6 21 0.80 0.031 3.433
6 22 0.711 0.028 3.522
8 22 0.711 0.028 2.46
8 23 0.610 0.025 2.565
8 24 0.511 0.022 2.616
8 26 0.457 0.018 2.7
10 23 0.610 0.025 1.91
10 24 0.511 0.022 1.98
10 25 0.508 0.020 2.032
10 27 0.417 0.016 2.1
12 24 0.511 0.022 1.52
12 26 0.457 0.018 1.66
14 25 0.508 0.020 1.30
14 26 0.457 0.018 1.357
14 27 0.417 0.016 1.397
16 29 0.345 0.013 1.243
16 30 0.315 0.012 1.27
18 26 0.457 0.018 0.98
18 30 0.315 0.012 1.096
18 31 0.295 0.010 1.16
20 27 0.417 0.016 0.86
20 30 0.315 0.012 0.955
20 31 0.295 0.010 1.02
20 32 0.274 0.009 0.88
22 30 0.315 0.012 0.840
22 32 0.274 0.009 0.88
24 28 0.35 0.014 0.71
24 30 0.315 0.012 0.743
24 33 0.254 0.008 0.8
26 31 0.295 0.010 0.682
28 31 0.295 0.010 0.612
30 29 0.345 0.013 0.52
30 32 0.274 0.009 0.573
30 33 0.254 0.008 0.64
30 34 0.234 0.007 0.613
32 33 0.254 0.008 0.540
34 34 0.234 0.007 0.513
36 34 0.234 0.007 0.472
38 35 0.213 0.005 0.455
40 31 0.295 0.010 0.38
40 36 0.193 0.008 0.442
40 38 0.152 0.0060 0.485
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 32 0.229 0.009 0.28
50 34 0.234 0.007 0.32
50 37 0.173 0.0068 0.335
50 39 0.132 0.0052 0.378
60 × 50 36 0.193 0.0076 -
60 × 50 37 0.173 0.0068 -
60 33 0.191 0.0075 0.23
60 37 0.173 0.0068 0.250
60 40 0.122 0.0048 0.301
60 42 0.10 0.0040 0.32
70 39 0.132 0.0052 0.231
70 41 0.112 0.0044 0.251
80 35 0.213 0.005 0.18
80 36 0.193 0.008 0.22
80 40 0.122 0.0048 0.196
80 42 0.102 0.004 0.216
90 41 0.112 0.0044 0.170
90 43 0.091 0.0036 0.191
100 36 0.193 0.008 0.15
100 42 0.102 0.004 0.152
100 43 0.091 0.0036 0.164
100 46 0.061 0.0024 0.198
120 × 108 43 0.091 0.0036 -
120 44 0.081 0.0032 0.131
120 45 0.071 0.0028 0.14
140 45 0.071 0.0028 0.11
140 46 0.061 0.0024 0.120
145 46 0.061 0.0024 0.1168
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 46 0.061 0.0024 0.081
180 47 0.051 0.002 0.090
200 47 0.051 0.002 0.076

The Application

  • Versatility
    Copper is ductile, easy to work, join and install. It is easily joined metallurgically by welding, soldering or brazing. Its softness means it can be formed to fit most design configurations.
  • Tensile strength
    Since copper is rigid as well as readily formable, it adds to total system integrity even when subjected to adverse conditions.
  • Low thermal expansion
    This is despite its properties of high conductivity.
  • Does not react with water
    Copper does not react with water, but it slowly reacts with atmospheric oxygen forming a layer of brown-black copper oxide. In contrast to the oxidation of iron by wet air, this oxide layer stops any further, bulk corrosion.
  • Biostatic
    Bacteria will not grow on copper mesh.
  • Long Lasting and Maintenance Free
    Its long-lasting and maintenance-free characteristics make copper the leading choice for many mechanical and industrial systems. It never requires painting for protection from corrosion. In addition, a thin film forms, providing natural protection from corrosion.
  • Fire Safety
    Copper wire mesh will not burn or support combustion. It will not carry fire through floors, walls and ceilings, and it will not decompose into toxic gases.
  • Sustainability
    Copper is 100% recyclable without any loss of quality, whether in a raw state or contained in a manufactured product. In volume, copper is the third most recycled metal after iron and aluminium. It is estimated that 80% of the copper ever mined is still in use today
  • Distinctive colour
    Copper is one of only four elemental metals with a natural colour other than grey or silver which makes it ideal for many decorative applications. The raw metal has a red-orange colour, which changes on exposure to the elements. Exposure creates a distinctive natural green verdigris or patina used to effect by architects and designers. The final patina is a particularly durable layer that is highly resistant to atmospheric corrosion, thereby protecting the underlying metal against further weathering.

ISO9001 Certification 60mesh Woven Wire Mesh Panel For FilteringISO9001 Certification 60mesh Woven Wire Mesh Panel For FilteringISO9001 Certification 60mesh Woven Wire Mesh Panel For FilteringISO9001 Certification 60mesh Woven Wire Mesh Panel For Filtering

The Package and Delivery

ISO9001 Certification 60mesh Woven Wire Mesh Panel For Filtering

ISO9001 Certification 60mesh Woven Wire Mesh Panel For Filtering
